    PLC Polystyrene Foam Making Machine , Siemens Foam Plate Making Machine

    Ask Lasest Price
    Brand Name : ZHMACH
    Model Number : ZHF-2017
    Certification : CE
    Price : inquiry
    Payment Terms : Western Union, L/C, T/T
    Supply Ability : two sets per month
    Delivery Time : 45days after receive downpayment
    • Product Details
    • Company Profile

    PLC Polystyrene Foam Making Machine , Siemens Foam Plate Making Machine

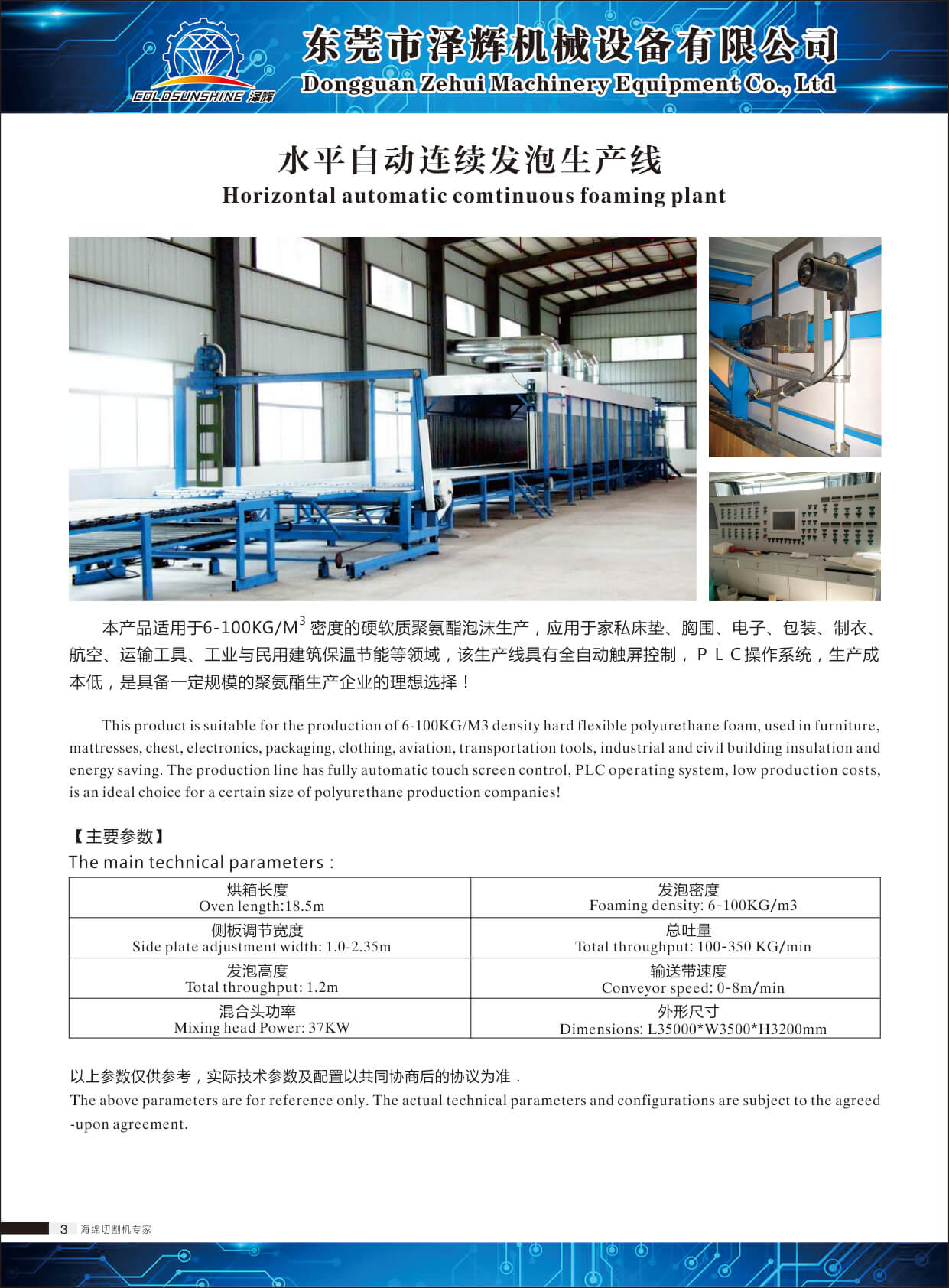

    Polystyrene Horizontal Flexible Foam Making Machine Line for Mattress and Pillow


    Specification


    This machine is mostly used to produce large-scale continuously foaming production (density is about 6 to 100 kg/m3 ) . It adopts the advanced touch screen and PLC Operation System , its automatization level is high , the production is low-cost and the quality fo foam is outstanding .
    It is the most ideal equipment for large-scale foaming produce . Man-machine interface , non-stop the machine can change formulas , it can produce the British elevation high-slow rebound , electronic cotton , brassieres cotton , polyester cotton , yellow-resistant up to 3-5 level , add powder 10 to 200 parts , the lowset density 6-100 , it also can produce on machine .


    Main specification


    Oven Length18m
    Foam Height1.0-1.25m
    Foam Width1.0-2.25m
    foam desity8-200kg/m³
    total power130KW
    inner coveyer length18m
    side board adjustable width0.98-2.3m
    conveyer belt speed0-8m/min
    fall plateseven section adjustable
    total output100-300kg/min
    machine dimensionL35× W4.2 ×H3.2m

    Main technique specification:


    DimensionTotal length 35m×Total width 4m×Total Height 3m
    Foaming material Group13 groups, man-machine interface, both manual and automatically computer control
    Foaming width980mm~2250mm
    Foaming heightMax 1200mm
    Foaming density8Kg/m³~100kg/m³
    Foaming speed2000r/min~7000r/min
    Max total output300kg/min
    Material spraying way① The way of down sprayer head (upper, down, front, back can be adjusted) ② the way of trough overflow pipe.
    Controlling way of foaming

    ① PLC controlling, can continuously foaming two different formulas in one time

    ② All inverter controlling foaming and work in phase with the production line

    ③ Oven declining board height and width can be adjusted by control box.

    ④ Oven side links width can be adjusted by control box

    Mixing –head motor

    37kw

    Total power

    About 90kw

    How is the packing of the machine?


    The entire machine will be nude packing. Some of the parts will be pack in wooden case. Others will be simple pack with paper or foam sheet with plastic film.


    How many container will be needed for the whole set of machine?


    For the standard 13 groups of Automatic continous foam machine Total three containers is enough 2*40HQ+1*20GP. In order to save the place and the cost of delivery we will also put some parts that inside the raw material tank.

    We will try the best way to pack all the machine well and also save the freight cost.


    FAQ:


    Q: How many days for the install and testing of the machine?


    A: After all the machine in your factory we will send 1-2 engineer help to install the machine you must send someone to help about 30 days installation will finished. After that one electrician and one foaming engineer will come to connecting the cable and run the machine in 15days. Total 45days the machine can be running.


    Q: For the cost of the engineer how much I need to pay?


    A: You need to pay USD40 one day for one engineer and also need to pay for the visa fee turn-round ticket fee and food hotel.


    Q:What kind of raw material tools we need to prepare for the testing?


    A: We will send you a list for the tools that you need to prepare for testing and also can help to buy if you required.


    Q: After the machine testing if we need some engineer to stay in our factory can you help to find?


    A: Sure we can help to hire one experience engineer to work in your factory but you need to discuss the salary and all details with him.


    Q:During the foaming if we have some problems abt the foam and the machine how can we do ?


    A: You can just call our after sale manager explain for the situation or send some picture we will help to handle within 24hours.


    Q: During the using of the products if we find some problem how can we slove?


    A: You can just help to check in the operation manual and the video first if can’t work just call our after sale service.


    Q: How many spare parts for you to give us?


    A: We will send you all the necessary spare parts that free of charge together with the machine. After that you need to buy.

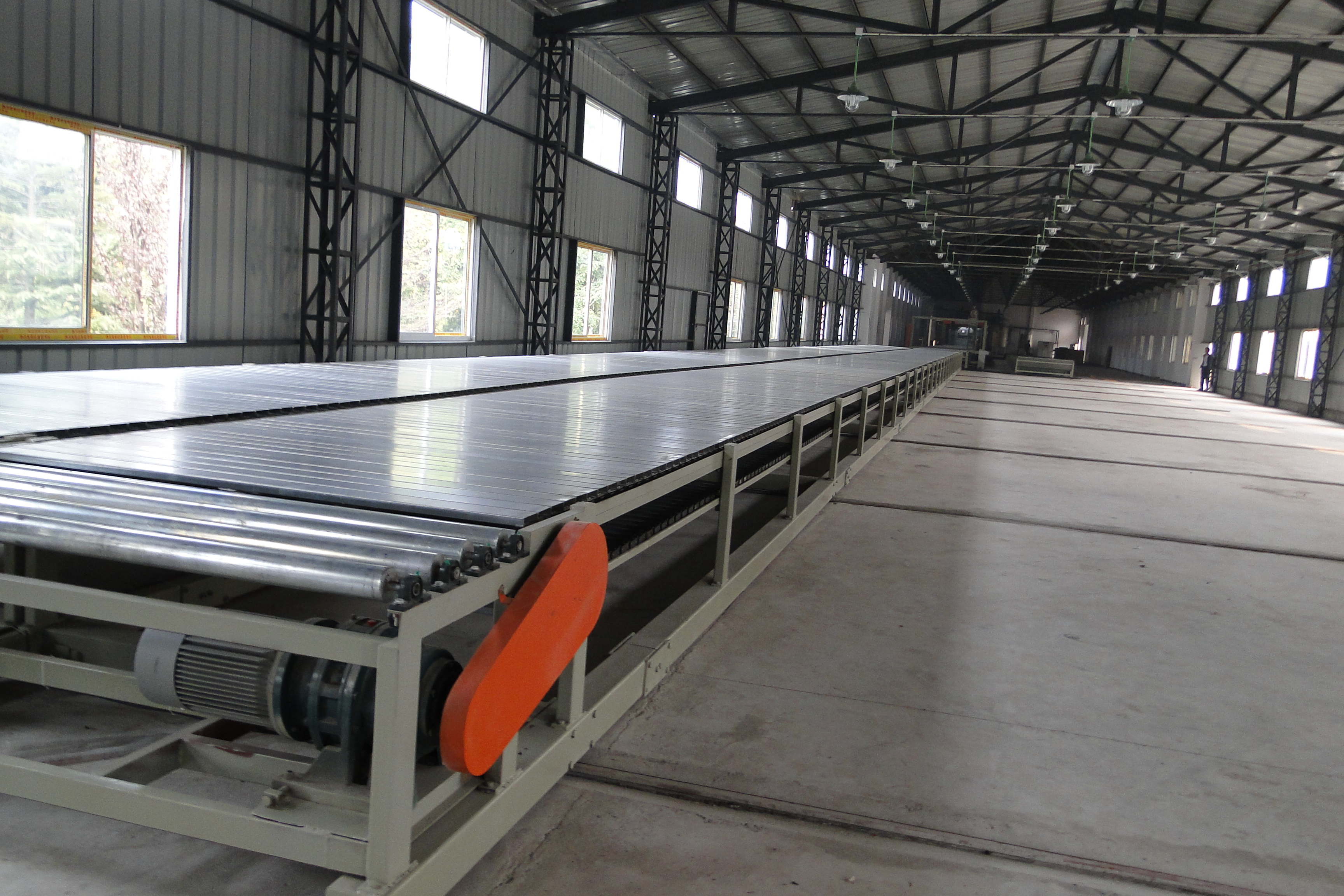

    The main part of the machine
