    Automatic Continous Flexible Foam Production Line , Foam Sheet Making Machine

    Ask Lasest Price
    Brand Name : ZHMACH
    Model Number : ZHF-2017
    Certification : CE
    Price : inquiry
    Payment Terms : Western Union, L/C, T/T
    Supply Ability : two sets per month
    Delivery Time : 45days after receive downpayment
    • Product Details
    • Company Profile

    Automatic Continous Flexible Foam Production Line , Foam Sheet Making Machine


    Memory Foam Mattress Sponge Horizontal Continuous Making Machine With CE


    The ZHF-2017 flexible foam production line is an automatic continous foaming machine for producing flexible polyurethane foam used in furniture,shoe material,packing,electron,garment and transportation industrial.it's the ideal production equipment for large-scale foaming.


    We use the siemens invertor/motor and U.S. viking pump and some good spare parts that good for make the flexible foam. The density we can make is from D8-D100 and we can add abt 50% of the lime powder during density above D23.


    Main specification


    Oven Length18m
    Foam Height1.0-1.25m
    Foam Width1.0-2.25m
    foam desity8-200kg/m³
    total power130KW
    inner coveyer length18m
    side board adjustable width0.98-2.3m
    conveyer belt speed0-8m/min
    fall plateseven section adjustable
    total output100-300kg/min
    machine dimensionL35× W4.2 ×H3.2m

    How is the packing of the machine?


    The entire machine will be nude packing. Some of the parts will be pack in wooden case. Others will be simple pack with paper or foam sheet with plastic film.


    How many container will be needed for the whole set of machine?


    For the standard 13 groups of Automatic continous foam machine Total three containers is enough 2*40HQ+1*20GP. In order to save the place and the cost of delivery we will also put some parts that inside the raw material tank.

    We will try the best way to pack all the machine well and also save the freight cost.


    Our Services

    1. We will help to design the layout of the machine that put in your factory.


    2. We will send 2-4 experience engineers to install and testing the machines.


    3. We will teach your engineer how to operate the machine and how to maintain the machines.


    4. We will give you the machine operation manual and the best formulation for target products that you are going to make.


    5. We will help to buy the best raw material for making the foam if you needed.

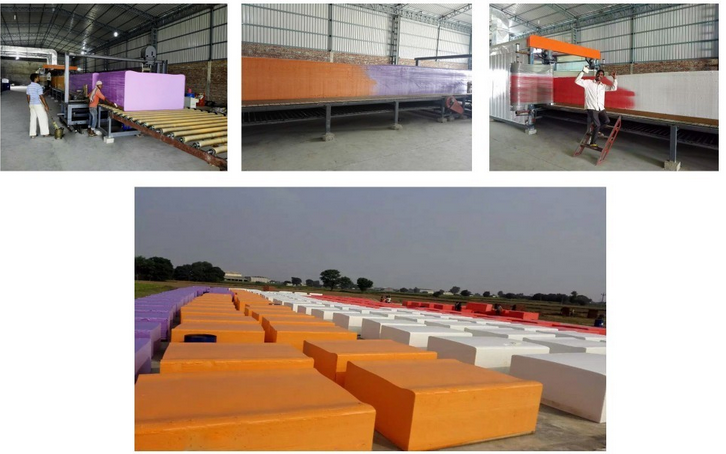

    The main part of the machine
