    Horizontal Continuous Foaming Production Machine For Sponge / Mattress

    Ask Lasest Price
    Brand Name : ZHMACH
    Model Number : ZHF-2017A
    Certification : CE Certificate
    Price : inquiry
    Payment Terms : Western Union, L/C, T/T
    Supply Ability : two sets per month
    Delivery Time : 45 days
    • Product Details
    • Company Profile

    Horizontal Continuous Foaming Production Machine For Sponge / Mattress


    Horizontal Continuous Foaming Production Machine For Sponge / Mattress

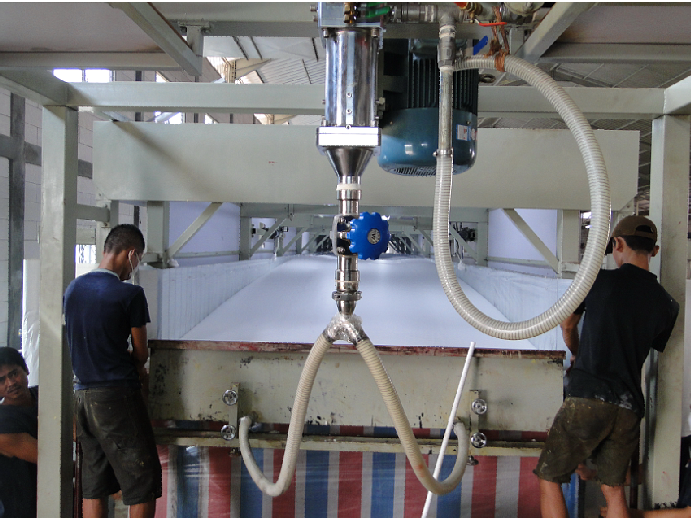

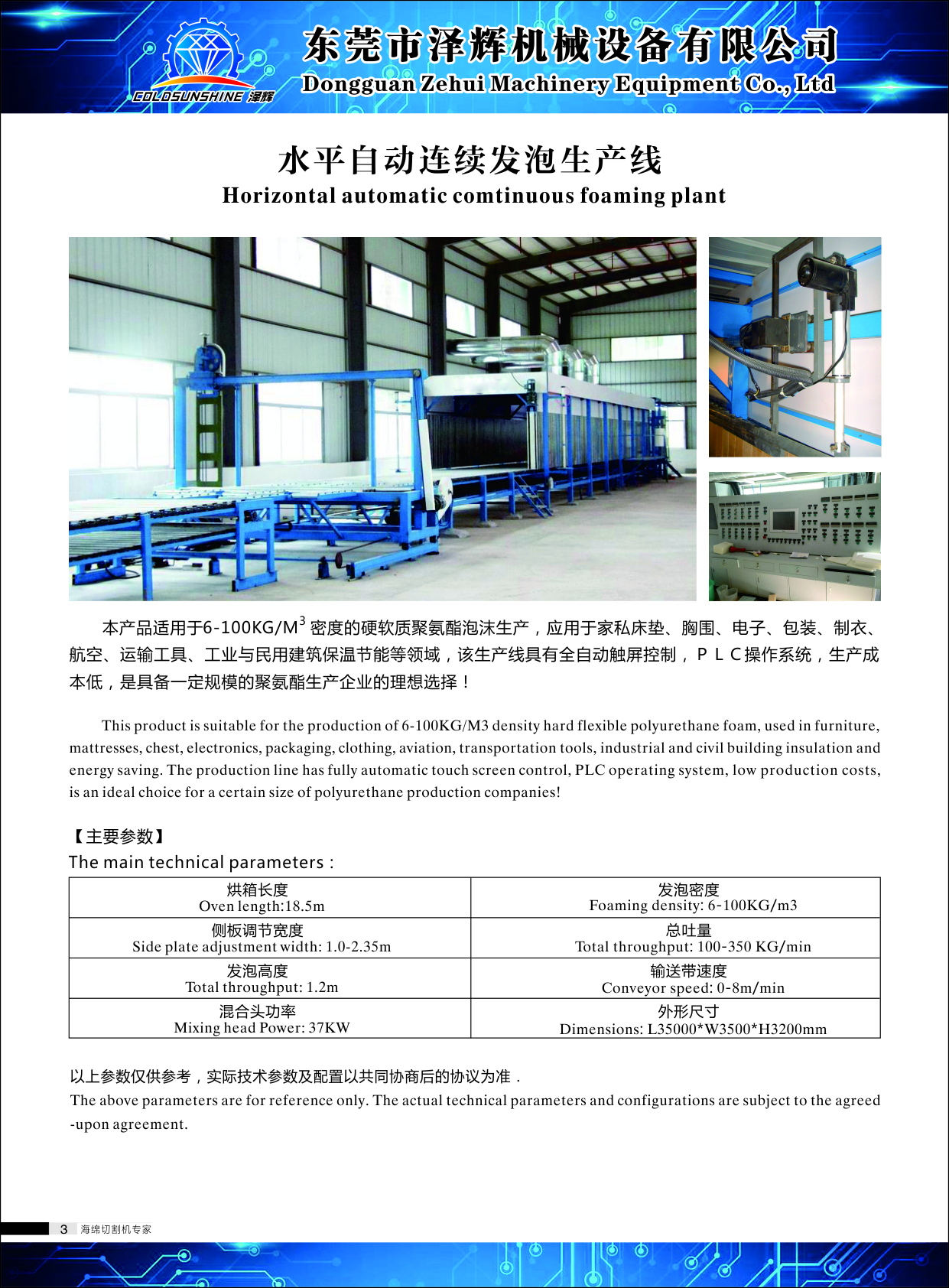

    This Foam Production Line is a automatic continuous foaming machine for producing flexible polyurethane foam used in furniture, shoe material, packing, electron, garment and transportation industrial. It’s the ideal production equipment for large-scale foaming.


    Main Specification


    Oven Length18m

    Inner Conveyer length

    18m
    Foaming Height1.0-1.25m

    Side Borar Adjustable Width


    0.98-2.3m
    Foaming Width1.0-2.25m

    Conveyer Belt Speed


    0-8m/min
    Foaming Density8-100kg/m3

    Fall Plate


    Six section adjustable
    Total Power130KW

    Total output


    100-300kg/min

    Transducer Types


    ModelPower/kw

    Use


    QtyBrand
    FC36037

    Mixing head


    1Danfoss
    FC-051P7.5

    PPG+CaCo3


    1Danfoss
    FC-051P5.5

    PPG


    1Danfoss
    FC-051P4

    TDI


    1Danfoss
    FC-051P2.2

    MC , Flame retardant


    2Danfoss
    FC-051P1.5

    Black


    1Danfoss
    FC-051P0.75Water, Ann, Si, Tin, Color A/B Anti-yellow7Danfoss
    FC-051P0.75

    Spray head


    1Danfoss
    FC-051P5.5/3.7/1.5Oven inner conveyer line,side conveyer line, cutting machine3Danfoss
    FC-051P7.5

    Conveyor belt


    1Danfoss

    Pump of loding material


    Model

    Specification


    UseQty/setBrand
    KCB-83.3

    200L/min


    PPG Loding1China
    CB-13

    200 L/min


    PPG+CaCo3 loding1China
    NB-63

    120 L/min


    TDI loding1Shanghai
    NB-32

    30 L/min


    MC loding1Shanghai
    KCB-5525 L/minFlame retardant loding1China

    Techniques and After-sale Services:


    1, Buyer should assist seller to undertake the testing. Both seller and buyer should be responsible for the on-site testing of the production line. The testing is mainly for three formulas including high, medium and low density.


    2, During the testing, If the raw material waste is caused by seller’s technical problems or the quality of the production line (i.e. foam collapse, burnings, or machine malfunction), the additional portion of the raw materials that over 2 tons are on seller’s account. The problems not related to seller’s are on buyer’s account.


    3, During installation, seller will send technicians to buyer’s place of business. Buyer should arrange his staffs to assist the technicians with the installation, and prepare water, electricity and place for installation.


    4, The machines are in simple packing.


    5, During installation and testing, buyer is responsible for the food, Visa fee, turn-round flight tickets and accommodation for the technicians sent by seller. Buyer also should pay $40/day/person as the allowance for the technicians sent by the seller.


    6, The machines are under one year warranty (in the circumstance of normal use). Natural damage, non-professional demolition, maintenance errors are not within the scope of warranty.


    7, After warranty period, seller will provide paid service for machine maintenance.


    Payment Terms:


    After signing of the contract, buyer pays as the advance payment 30% of total price , when seller gets the deposit, the contract takes into effect; the balance of 70%will be paid by buyer before shipment.
