Continuous PU Polyurethane Foam Machine , Memory Foam Mattress Making Machine

Dongguan Zehui machinery equipment co., ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Continuous PU Polyurethane Foam Machine , Memory Foam Mattress Making Machine from wholesalers

    Buy cheap Continuous PU Polyurethane Foam Machine , Memory Foam Mattress Making Machine from wholesalers
    • Buy cheap Continuous PU Polyurethane Foam Machine , Memory Foam Mattress Making Machine from wholesalers

    Continuous PU Polyurethane Foam Machine , Memory Foam Mattress Making Machine

    Ask Lasest Price
    Brand Name : ZHMACH
    Model Number : ZHFP-11/15A
    Certification : CE Certificate
    Price : inquiry
    Payment Terms : Western Union, L/C, T/T
    Supply Ability : 2 sets per month
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    Continuous PU Polyurethane Foam Machine , Memory Foam Mattress Making Machine


    Manual Foam Mattress Mixing Making Machine , Foam Production Line 10Kg / m³ - 60Kg / m³


    This machine adopts frequency conversion timing auto-controlled system, mixing speed up fast. It also fits willingly electron brake device. The mixing is uniform, and the operation is simple. It is the first choice to produce foam rubber in small quantities.

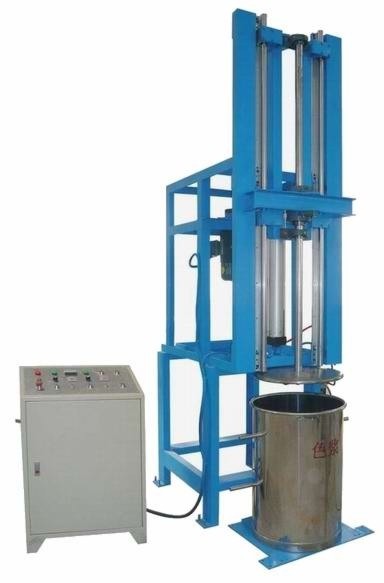

    ZHFP-11/15A Manul Vertical Foaming Machine Specifications:


    ModelZHFP-11AZHFP-15A
    1. Total power11Kw15Kw
    2. Foaming output max150Kg180Kg
    3. Mixing speed max0-2800r/min0-2800r/min
    4. Mixing weight950Kg1050Kg
    5. Foaming-bucket2PCS2PCS
    6. Machine external sizeL1380*W940*H3050mmL1380*W940*H3050mm

    Manual Horizontal Foaming Machine

    • Electronic frequency converter control
    • with features of mixing speed fast
    • Suitable for in limited quantities foam production

    This machine adopts ecevtronic frequency converter control,with features of mixing speed fast,electronic braking,stirring evenly and easy to operate,it is the first choice for in limited quantities foam production.


    ZHFP-11A

    Power : 11kw

    Foam output max : 150kg

    Mixing speed max : 0-2800r/min

    Machine weight : 700kg

    Foam barrel configuration : ¢450mm ,¢500mm ,¢550mm Foaming-bucket 2PCS

    Machine size : L1250×W650×H1100mm


    ZHFP-15A

    Power : 15kw

    Foam output max : 180kg

    Mixing speed max : 0-2800r/min

    Machine weight : 700kg

    Foam barrel configuration : ¢450mm ,¢500mm ,¢550mm Foaming-bucket 2PCS

    Machine size : L1250×W650×H1100mm


    It's usually work with two type of foam cutting machine:


    Vertical cutting machine and Horizontal cutting machine


    TECHNICAL DATA
    TypeZHQG-4L(big)
    Inner Table Size1720×2290(mm)
    Outer Table Size2000×2290(mm)
    Cutting Height800/1200(mm)
    Cutting Thickness>3mm
    Cutting Line8100/8900(mm)
    Overall Power1.74kW
    Overall Dimension

    4500×4800×2550 mm

    (L×W×H)

    Overall Weight1600kg

    TECHNICAL DATA
    TypeZHQG-1650
    Max. Product Size2000×1650×1200(mm)
    Cutting Line8500 mm
    Control SystemTransducer
    Cutting Speed0~25m/min
    Overall Power8.14kW
    Overall Dimension5800×3500×2400 mm
    Overall Weight2000kg

    Marks:
    1. According to seller's standard designed drawing diagrame to arrange the production and inspection.
    2. if customer reqiure, techincians will be sent by seller, and the turn-round tickets fee, vise fee, $40 per day of allowance fee and hotel accommodation are in charge of buyer.
    3. Payments Terms: T/T 30% advance before production.the balance of total amount 70% will be paid before shipment.
    4. Delivery forms: Send to ShenZhen Seaport
    5. Spare parts: Offer assorted maintain tools.
    6. Package: paper & film package.
    7. Voltage: all the eqiupments are: 380V, 50HZ, 3P.(Voltage can be changed, but price need to increase 3%)
    8. Delivery date: 45 days (after seller get the advance).
    9. All the machines maintain for one year, if the damages caused by machine itself, excluding the man-made accidents, the broken parts offered by seller in free of charge, but the transport cost for buyer's account.
