High Rebound Sponge Polyurethane Foam Machine With PLC Digital Touch Screen Control

Dongguan Zehui machinery equipment co., ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap High Rebound Sponge Polyurethane Foam Machine With PLC Digital Touch Screen Control from wholesalers

    Buy cheap High Rebound Sponge Polyurethane Foam Machine With PLC Digital Touch Screen Control from wholesalers
    • Buy cheap High Rebound Sponge Polyurethane Foam Machine With PLC Digital Touch Screen Control from wholesalers
    • Buy cheap High Rebound Sponge Polyurethane Foam Machine With PLC Digital Touch Screen Control from wholesalers
    • Buy cheap High Rebound Sponge Polyurethane Foam Machine With PLC Digital Touch Screen Control from wholesalers

    High Rebound Sponge Polyurethane Foam Machine With PLC Digital Touch Screen Control

    Ask Lasest Price
    Brand Name : ZHMACH
    Model Number : ZHF-2017
    Certification : CE
    Price : inquiry
    Payment Terms : Western Union, L/C, T/T
    Supply Ability : 1.5 sets per month
    Delivery Time : 45days after receive downpayment
    • Product Details
    • Company Profile

    High Rebound Sponge Polyurethane Foam Machine With PLC Digital Touch Screen Control


    High Rebound Sponge Polyurethane Foam Machine With PLC Digital Touch Screen Control


    Process :


    All the P.U. chemicals are first mixed together in a mixing chamber & then taken into a metal trough where the initial reaction takes place.

    The rising foam then passes from the top of the trough on to a variable width fall plate, which then leads the expanding foam block along a metal slat conveyor for further expansion.

    Outputs: The machine is delivers a maximum of 350kg per minute.


    Product Description

    Full-automatic Continuouse Polyurethane Foam Making Machine is the automatic horizontal continously foaming machine that make the furniture foam like sofa and mattress. The standard machine was together with 13 kinds of raw material.

    For the process of foaming:

    Loading all the raw materials inside the material tank with the loading system--control the temperature of the raw material inside the tank with the chiller--check the flow of all the raw materials before foaming--make some small sample test before foaming (make sure the flow and everthing is correct)--Put the karft paper and the plastic film-- foaming process


    Main specification

    ModelPass CaliberUseQtyBrand
    K-301L/75DA cross valveG2″POP, PPG,CaCO3,Foam3Korea
    K-301L/63DA p cross valveG1″TDI foam1Korea
    K-301L/32DA cross valveG½″Other small material, Flame retardant, Anti-yellow9Korea
    DK800 glass flow meter20-200 L/hAIR1China
    FA10-15 glass flow meter40~400L/HH2O1


    China

    FA10-25F glass flow meter150~1500L/HMC1


    China

    FA10-25F glass flow meter600~6000L/HTDI1
    Transducer speed adjusted headΦ25*2000mmfoam1Qianghui


    Material pot types: (The work pressure in the pot is normal pressure)

    TypeUseSpecificationQty
    Big material tankPPG5m³/δ5mmA3 steel plate, with temperature controlling, stirrer, filter system1
    Big material tankPOP5m³/δ5mmA3 steel plate, with temperature controlling, stirrer, filter system

    1

    Big material tankCaCo35m³/δ5mmA3 steel plate, with temperature controlling, stirrer, filter system1
    Big material tankTDI5m³/δ5mm A3 steel plate, with temperature controlling, stirrer, filter system

    1

    Big material tankFlame retardant2m³/δ3m stainless steel, with filter system1
    Big material tankMC2m³/δ2mm stainless steel, with filter system1
    Small material tankSi180L/δ1mm stainless steel1
    Small material tankA-33180L/δ1mm stainless steel, with filter system1
    Small material tankT9180L/δ1mm stainless steel, with filter system1
    Small material tankH2O180L/δ1mm stainless steel1
    Small material tankColor180L/δ1mm stainless1
    Small material tankAnti-yellow180L/δ1mm stainless steel1
    Small material tankBlack180L/δ1mm stainless steel1
    Floor powder mixing tankPPG, POP, Powder1.5m³/δ3mmA3 steel plate, with filter system1
    Filter tankPOP, Powder1.5m³/δ4mmA3 steel plate1

    Our Services


    1.We will help to design the layout of the machine that put in your factory.We will send 2-4 experience engineers to install and testing the machines.
    2.We will teach your engineer how to operate the machine and how to maintain the machines.
    3.We will give you the machine operation manual and the best formulation for target products that you are going to make.
    4.We will help to buy the best raw material for making the foam if you needed.


    Q: How many days for the install and testing of the machine?

    A: After all the machine in your factory we will send 1-2 engineer help to install the machine you must send someone to help about 30 days installation will finished. After that one electrician and one foaming engineer will come to connecting the cable and run the machine in 15days. Total 45days the machine can be running.

    Q: For the cost of the engineer how much I need to pay?

    A: You need to pay USD50 one day for one engineer and also need to pay for the visa fee turn-round ticket fee and food hotel.

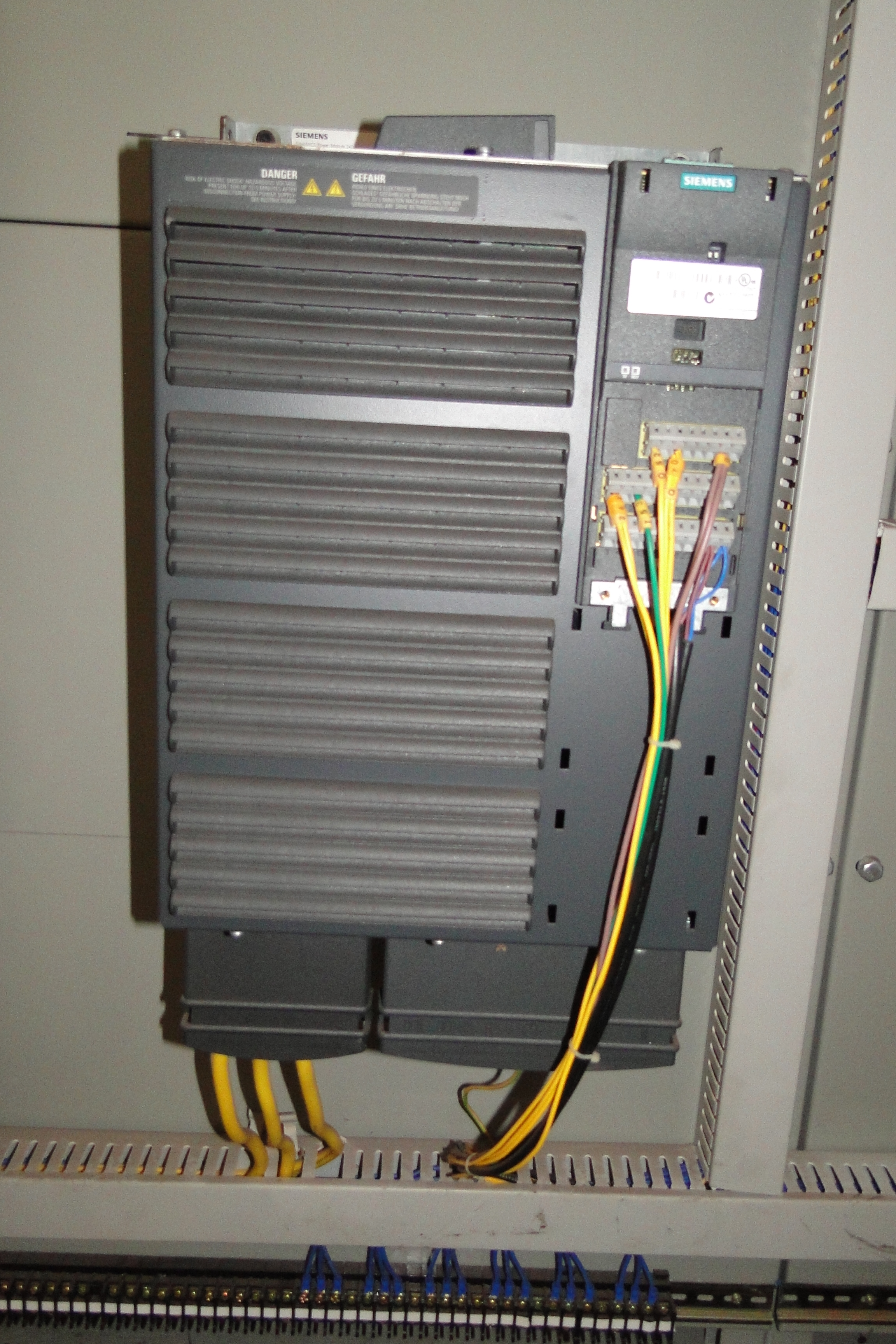

    The main part of the machine
