    Automatic Low Pressure Spray Foam Injection Machine For Polyurethane Foam

    Ask Lasest Price
    Brand Name : ZHMACH
    Model Number : ZFP-2017
    Certification : CE Certificate
    Price : inquiry
    Supply Ability : One set per month
    Delivery Time : 45 days
    • Product Details
    • Company Profile

    Automatic Low Pressure Spray Foam Injection Machine For Polyurethane Foam


    Automatic Low Pressure Spray Foam Injection Machine For Polyurethane Foam


    Product Description


    The device is suitable for the production of hard/soft polyurethane foam with 6-100 KG/M3 density , which is used in the fields of furniture,bra,shoes,electronice,packaging,clothing,aviation,transportation,industrial and civil building heat preservation and energy-saving.The production line has automatic computer to control,PLC operating system with high degree of automation and low production costs,it is the ideal equipment for large enterprises.


    [Specifications]


    DimensionL35M×W4M×H3M
    Foaming width980mm~2250mm
    Foaming heightUnder 1200mm
    Foaming density8kg/m3~100kg/m3
    Foaming speed2000rpm~7000rpm

    (1) The whole machine parts specifications:


    1. Foaming control Platform(standard) L3m×W2.52m×H0.7m

    2. Oven declining board (standard) L9m×W0.98m~2.30m

    3. Oven side links(standard) L18m×W2.3m×H1.2m

    4. Oven machine frame(standard) L18m ×W4m×H3m

    5. Oven inner conveyer line (standard) L18m×W2.3m×H0.83m

    6. Foam block cutter machine (standard) W2.3m×H1.30m(saw/knife with cross type )


    (2) Main technique specification


    1. Total length 33m× width 4m×height 3m

    2. Foaming material Group: 13 groups, man-machine interface, automatically computer control

    3. Foaming width 980mm~2250mm

    4. Foaming height Max 1300mm

    5. Foaming density 8Kg/m³~100Kg/m³

    6. Foaming speed 2000r/min~7000r/min

    7. Max total output 300KG/min


    MotorGuangdong brand
    PumpViking pump & Chinese pump
    InvertorSiemens brand
    PLCSiemens
    TemperatureControl system

    Material pot types: (The work pressure in the pot is normal pressure)


    TypeUse

    Specification


    Qty
    Big material tankPPG5m³/δ5mmA3 steel plate, with temperature controlling, stirrer, filter system1
    Big material tankPOP5m³/δ5mmA3 steel plate, with temperature controlling, stirrer, filter system

    1


    Big material tankCaCo35m³/δ5mmA3 steel plate, with temperature controlling, stirrer, filter system1
    Big material tankTDI5m³/δ5mm A3 steel plate, with temperature controlling, stirrer, filter system

    1


    Big material tankFlame retardant

    2m³/δ3m stainless steel, with filter system


    1
    Big material tankMC

    2m³/δ2mm stainless steel, with filter system


    1
    Small material tankSi180L/δ1mm stainless steel1
    Small material tankA-33180L/δ1mm stainless steel, with filter system1
    Small material tankT9180L/δ1mm stainless steel, with filter system1
    Small material tankH2O180L/δ1mm stainless steel1
    Small material tankColor180L/δ1mm stainless1
    Small material tankAnti-yellow180L/δ1mm stainless steel1
    Small material tankBlack180L/δ1mm stainless steel1
    Floor powder mixing tankPPG, POP, Powder1.5m³/δ3mmA3 steel plate, with filter system1
    Filter tankPOP, Powder

    1.5m³/δ4mmA3 steel plate


    1

    Remark:The above only for reference. All the data is subjected to sold products.

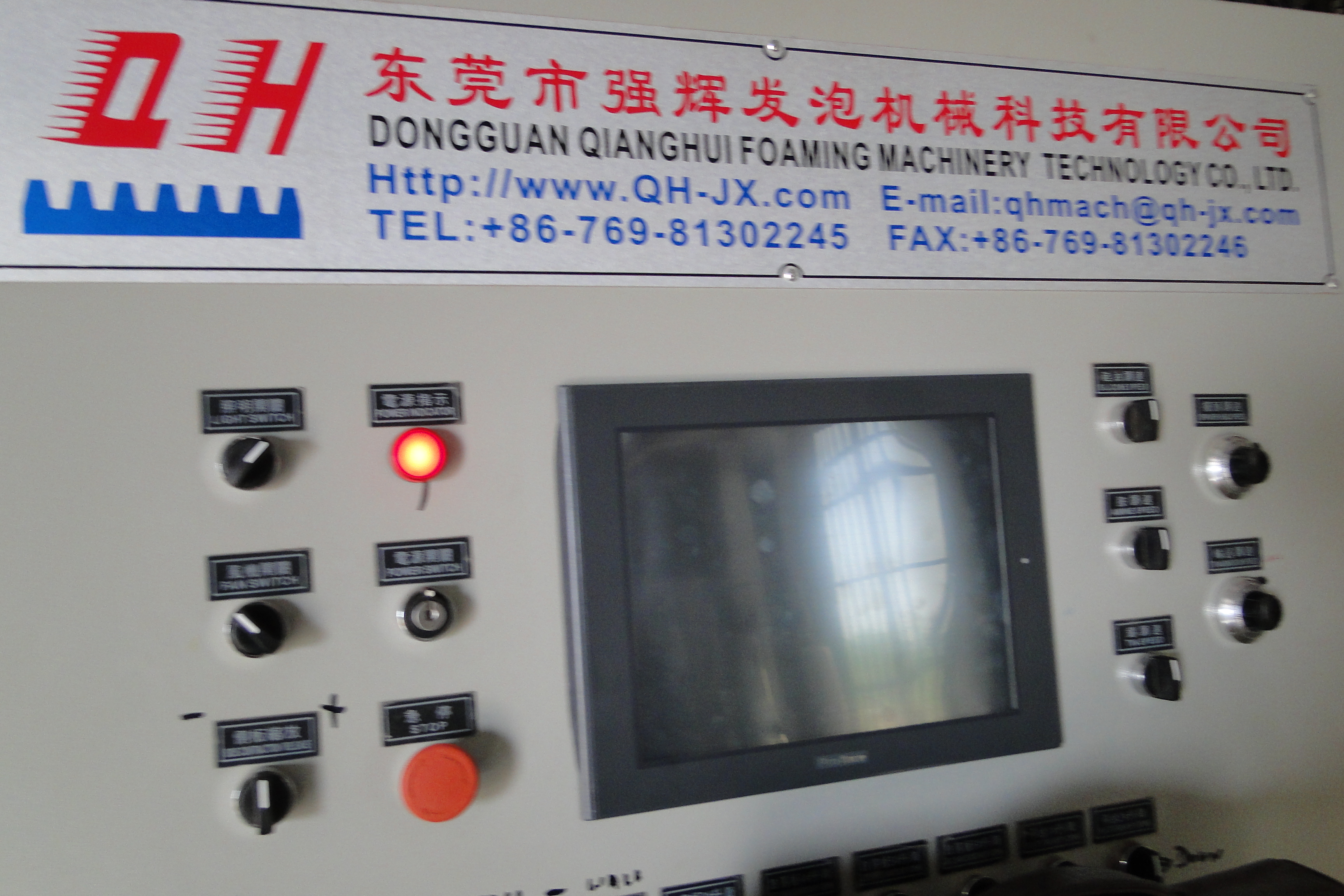

    Foaming control platform
    Mixing head and material tanks
    Packing & shiping

    How is the packing of the machine?


    The entire machine will be nude packing. Some of the parts will be pack in wooden case. Others will be simple pack with paper or foam sheet with plastic film.


    How many container will be needed for the whole set of machine?


    Total three containers is enough 2*40HQ+1*20GP. In order to save the place and the cost of delivery we will also put some parts that inside the raw material tank.


    We will try the best way to pack all the machine well and also save the freight cost.


    Our Services


    We will help to design the layout of the machine that put in your factory.

    We will send 2-4 experience engineers to install and testing the machines.

    We will teach your engineer how to operate the machine and how to maintain the machines.

    We will give you the machine operation manual and the best formulation for target products that you are going to make.


    FAQ


    Q: How many days for the install and testing of the machine?


    A: After all the machine in your factory we will send 1-2 engineer help to install the machine you must send someone to help about 30 days installation will finished. After that one electrician and one foaming engineer will come to connecting the cable and run the machine in 15days. Total 45days the machine can be running.


    Q: For the cost of the engineer how much I need to pay?


    A: You need to pay USD50 one day for one engineer and also need to pay for the visa fee turn-round ticket fee and food hotel.


    Q:What kind of raw material tools we need to prepare for the testing?


    A: We will send you a list for the tools that you need to prepare for testing and also can help to buy if you required.


    Q: After the machine testing if we need some engineer to stay in our factory can you help to find?


    A: Sure we can help to hire one experience engineer to work in your factory but you need to discuss the salary and all details with him.


    Q:During the foaming if we have some problems abt the foam and the machine how can we do?


    A: You can just call our after sale manager explain for the situation or send some picture we will help to handle within 24hours.


    Automatic Low Pressure Spray Foam Injection Machine For Polyurethane Foam


    You are warmly welcome come and visit our factory.
