    45 Meters Long Continuous Polyurethane Foam Injection Machine Horizontal

    Ask Lasest Price
    Brand Name : ZHMACH
    Model Number : ZHF-2017
    Certification : CE
    Price : inquiry
    Payment Terms : Western Union, L/C, T/T
    Supply Ability : two sets per month
    Delivery Time : 45days after receive downpayment
    • Product Details
    • Company Profile

    45 Meters Long Continuous Polyurethane Foam Injection Machine Horizontal


    45 Meters Long Continuous Foam Making Machine For Flexible Polyurethane Foam

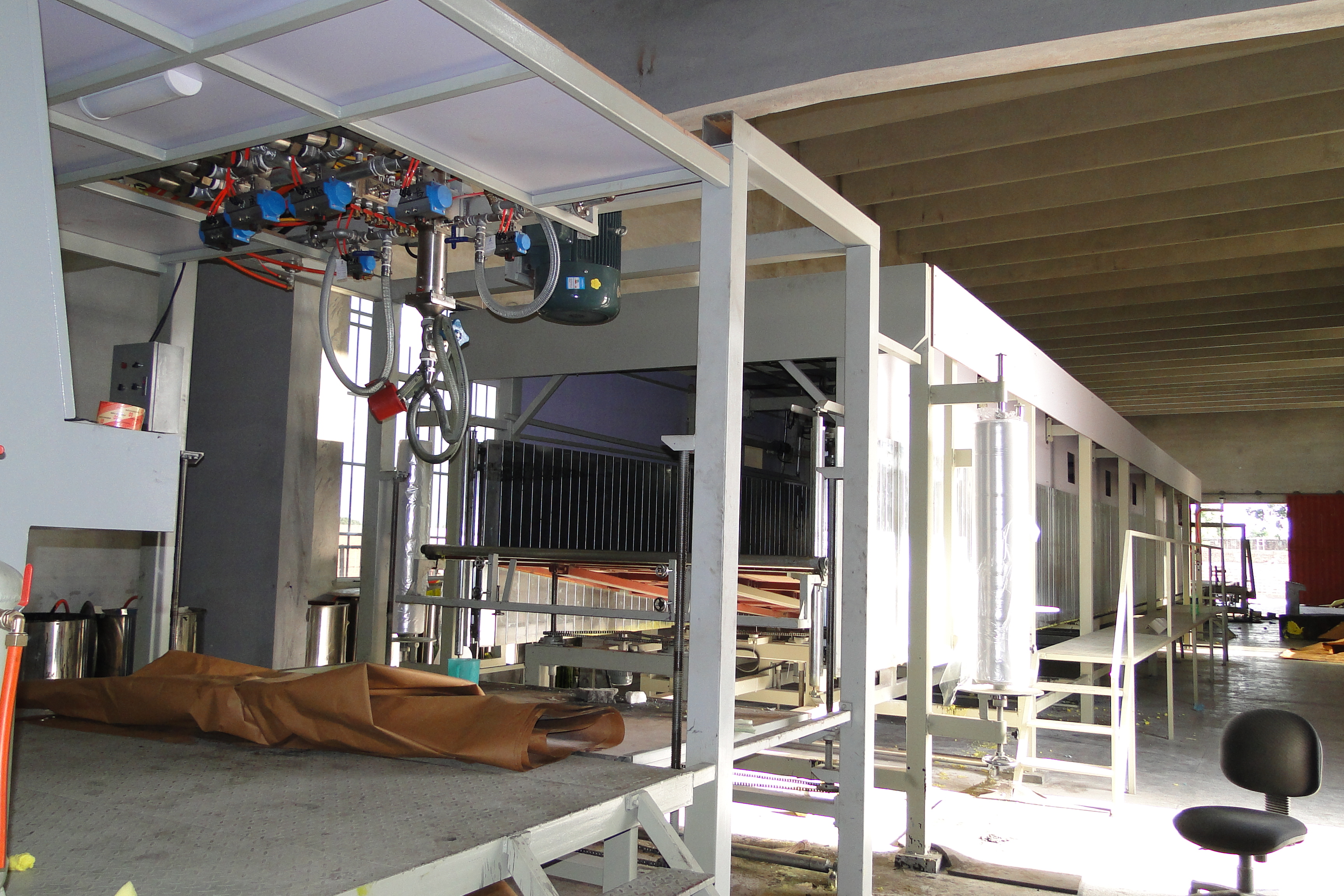

    The ZHF-2017 Horizontal Continuously foam production line is an automatic continous foaming machine for producing flexible polyurethane foam used in furniture,shoe material,packing,electron,garment and transportation industrial.it's the ideal production equipment for large-scale foaming.


    We use the siemens invertor/motor and U.S. viking pump and some good spare parts that good for make the flexible foam. The density we can make is from D8-D100 and we can add abt 50% of the lime powder during density above D23.


    Our Services

    1. We will make all the machine parts and install it in our factory after the customer come and check the machine then we arrange the loading.


    2. We will send 2-4 engineers to the customer factory to help to install and testing the machine. We will send the opeartion manul and teach the engineer in customer factory how to use the machine.


    3. We will offer one year warranty period and after that we will offer long time after sale service.


    Main technique specification:


    DimensionTotal length 35m×Total width 4m×Total Height 3m
    Foaming material Group13 groups, man-machine interface, both manual and automatically computer control
    Foaming width980mm~2250mm
    Foaming heightMax 1200mm
    Foaming density8Kg/m³~100kg/m³
    Foaming speed2000r/min~7000r/min
    Max total output300kg/min
    Material spraying way① The way of down sprayer head (upper, down, front, back can be adjusted) ② the way of trough overflow pipe.
    Controlling way of foaming

    ①PLC controlling, can continuously foaming two different formulas in one time

    ②All inverter controlling foaming and work in phase with the production line

    ③Oven declining board height and width can be adjusted by control box.

    ④Oven side links width can be adjusted by control box

    Mixing –head motor

    37kw

    Total power

    About 90kw
    TypeUseSpecificationQty

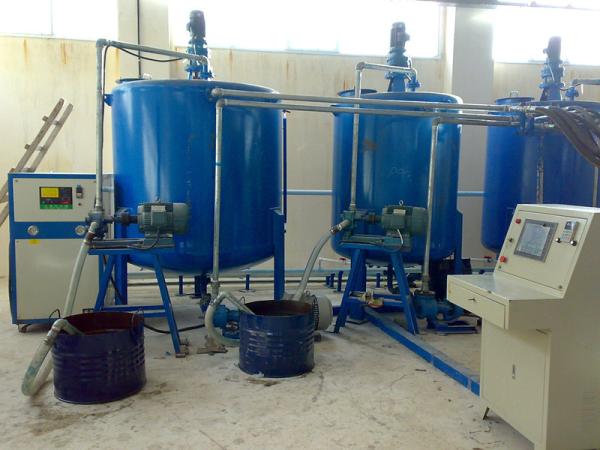

    Big material tankPPG5m³/δ5mmA3 steel plate, with temperature controlling, stirrer, filter system1
    Big material tankPOP5m³/δ5mmA3 steel plate, with temperature controlling, stirrer, filter system

    1


    Big material tankCaCo35m³/δ5mmA3 steel plate, with temperature controlling, stirrer, filter system1
    Big material tankTDI5m³/δ5mm A3 steel plate, with temperature controlling, stirrer, filter system

    1


    Big material tankFlame retardant2m³/δ3m stainless steel, with filter system1
    Big material tankMC2m³/δ2mm stainless steel, with filter system1
    Small material tankSi180L/δ1mm stainless steel1
    Small material tankA-33180L/δ1mm stainless steel, with filter system1
    Small material tankT9180L/δ1mm stainless steel, with filter system1
    Small material tankH2O180L/δ1mm stainless steel1
    Small material tankColor180L/δ1mm stainless1
    Small material tankAnti-yellow180L/δ1mm stainless steel1
    Small material tankBlack180L/δ1mm stainless steel1
    Floor powder mixing tankPPG, POP, Powder1.5m³/δ3mmA3 steel plate, with filter system1
    Filter tankPOP, Powder1.5m³/δ4mmA3 steel plate1

    FAQ:


    Q: How many days for the install and testing of the machine?


    A: After all the machine in your factory we will send 1-2 engineer help to install the machine you must send someone to help about 30 days installation will finished. After that one electrician and one foaming engineer will come to connecting the cable and run the machine in 15days. Total 45days the machine can be running.


    The main part of the machine





    Specification for 13groups of Horizontal foaming m...
